固定式熱風循環隧道烘箱是指爐盤固定、網鏈旋轉傳輸被加熱物料的熱風循環隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。

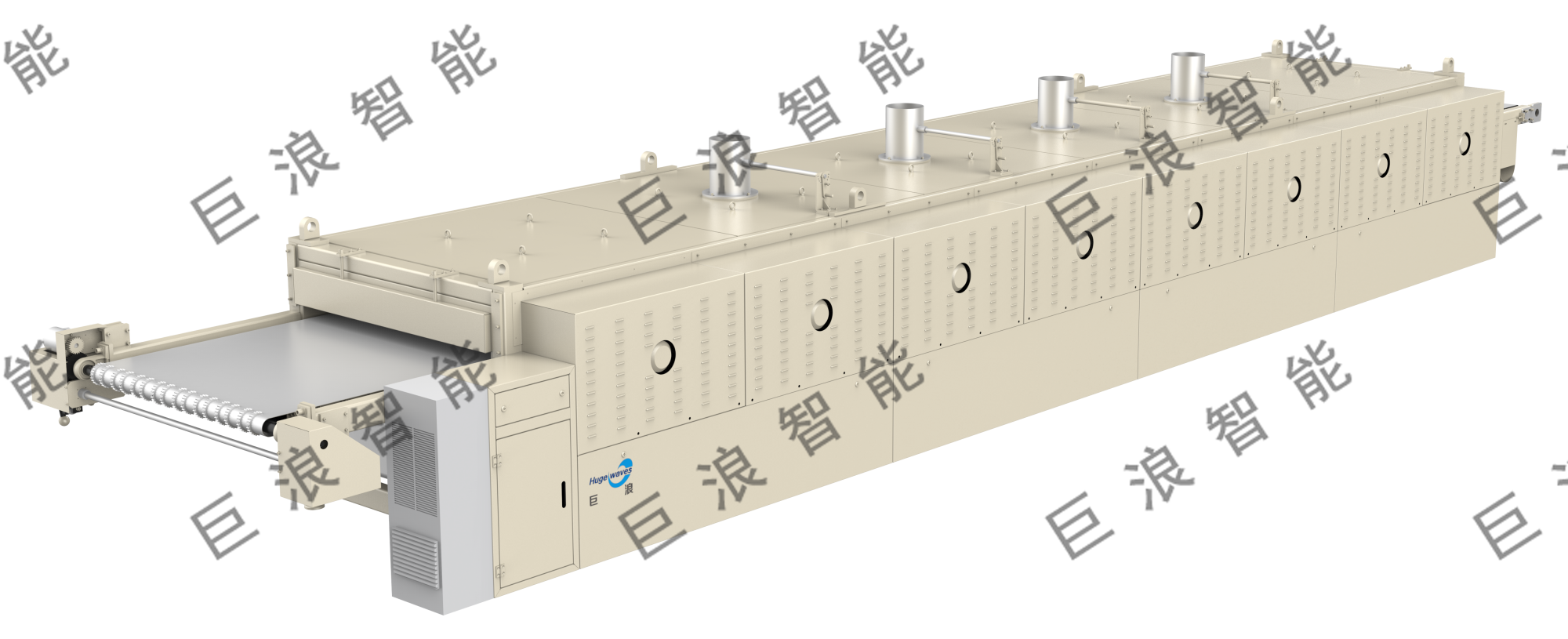

The fixed heated air circulation tunnel oven refers to the heated air circulation tunnel heating device which fixes the heated object through furnace plate and transmits heated material in a rotary manner through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
固定式熱風循環隧道烘箱是指爐盤固定、網鏈旋轉傳輸被加熱物料的熱風循環隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。
The fixed heated air circulation tunnel oven refers to the heated air circulation tunnel heating device which fixes the heated object through furnace plate and transmits heated material in a rotary manner through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
選配：1.桁架上料機械手；2.板料復合機構；3.接觸式加熱機；4.壓機上下料機器人；5.伸縮送料機構
Optional: 1. Truss feeding manipulator; 2. Sheet composite mechanism; 3. Contact heating machine; 4. Material cutting robot on press; 5. Telescopic feeding mechanism
*可根據客戶的需求定制
*Able to be customized
*參數及圖片可能變化，具體以技術協議為準
*Parameters and photos may vary. The technical agreement prevails.
序號 S/N | 型號Model | 加熱區數量Number of heating zones | 最高設定溫度℃ Max. Temperature ℃ | 最大加熱材料（L*W） Max. Heated Material (L*W) | 網鏈速度 mm/s Net Chain Speed mm/s | 溫度均勻度 Temperature uniformity | 溫度波動度 Temperature fluctuation |
1 | HW-HAC-FO21720CA | 2 | 400 | 1700*2000 | 1-800 | ±3% | ±2℃ |
2 | HW-HAC-FO31720CA | 3 | 400 | 1-800 | ±3% | ±2℃ | |
3 | HW-HAC-FO61720CA | 6 | 400 | 1-800 | ±3% | ±2℃ | |
4 | HW-HAC-FO21827CA | 2 | 400 | 1800*2700 | 1-800 | ±3% | ±2℃ |
5 | HW-HAC-FO31827CA | 3 | 400 | 1-800 | ±3% | ±2℃ | |
6 | HW-HAC-FO61827CA | 6 | 400 | 1-800 | ±3% | ±2℃ | |
7 | HW-HAC-FO22130CA | 2 | 400 | 2100*3000 | 1-800 | ±3% | ±2℃ |
8 | HW-HAC-FO32130CA | 3 | 400 | 1-800 | ±3% | ±2℃ | |
9 | HW-HAC-FO62130CA | 6 | 400 | 1-800 | ±3% | ±2℃ | |
10 | HW-HAC-FO23030CA | 2 | 400 | 3000*3000 | 1-800 | ±3% | ±2℃ |
11 | HW-HAC-FO33030CA | 3 | 400 | 1-800 | ±3% | ±2℃ | |
12 | HW-HAC-FO63030CA | 6 | 400 | 1-800 | ±3% | ±2℃ |
